climate-control Model : CNKD04A021 current

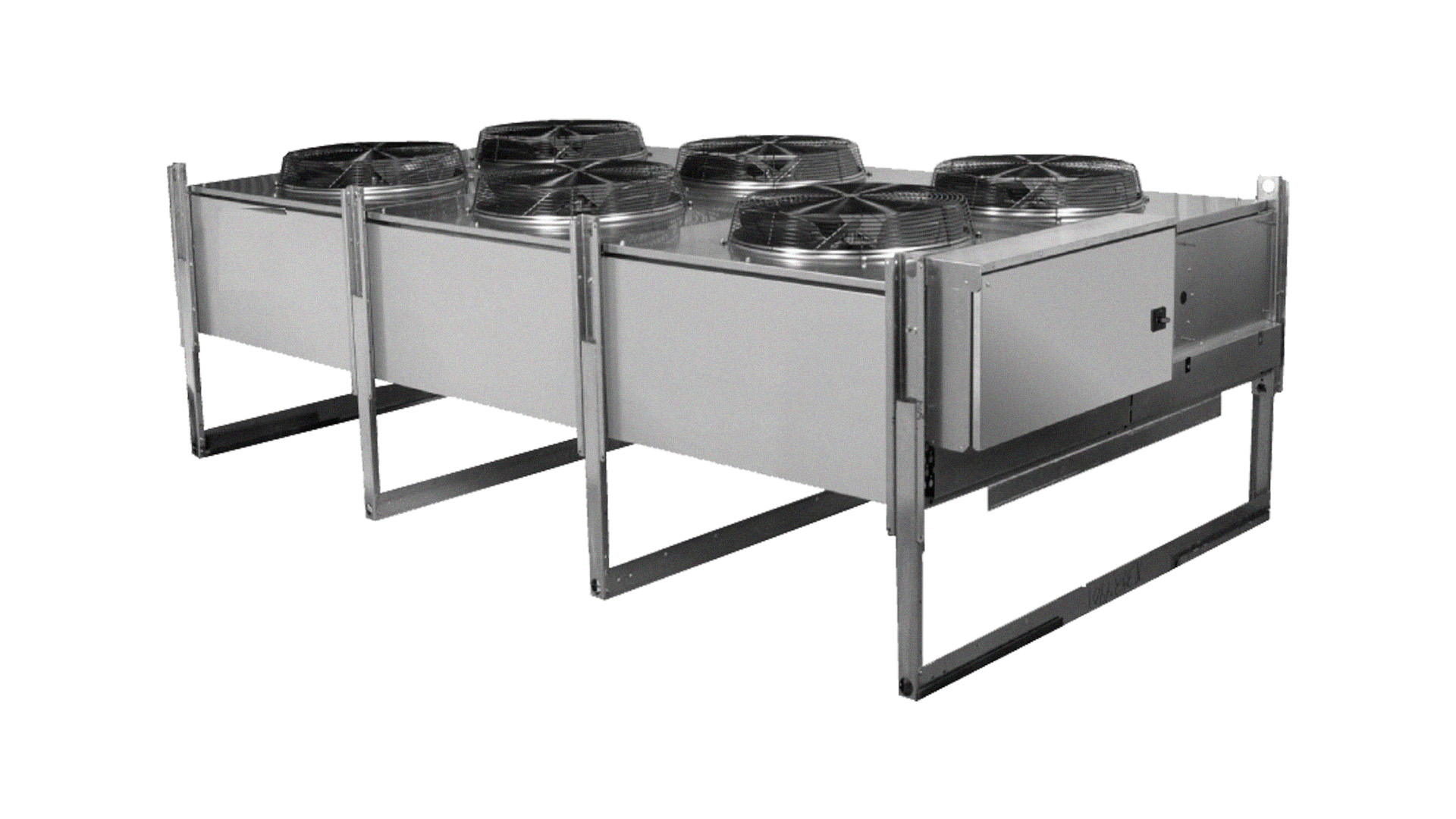

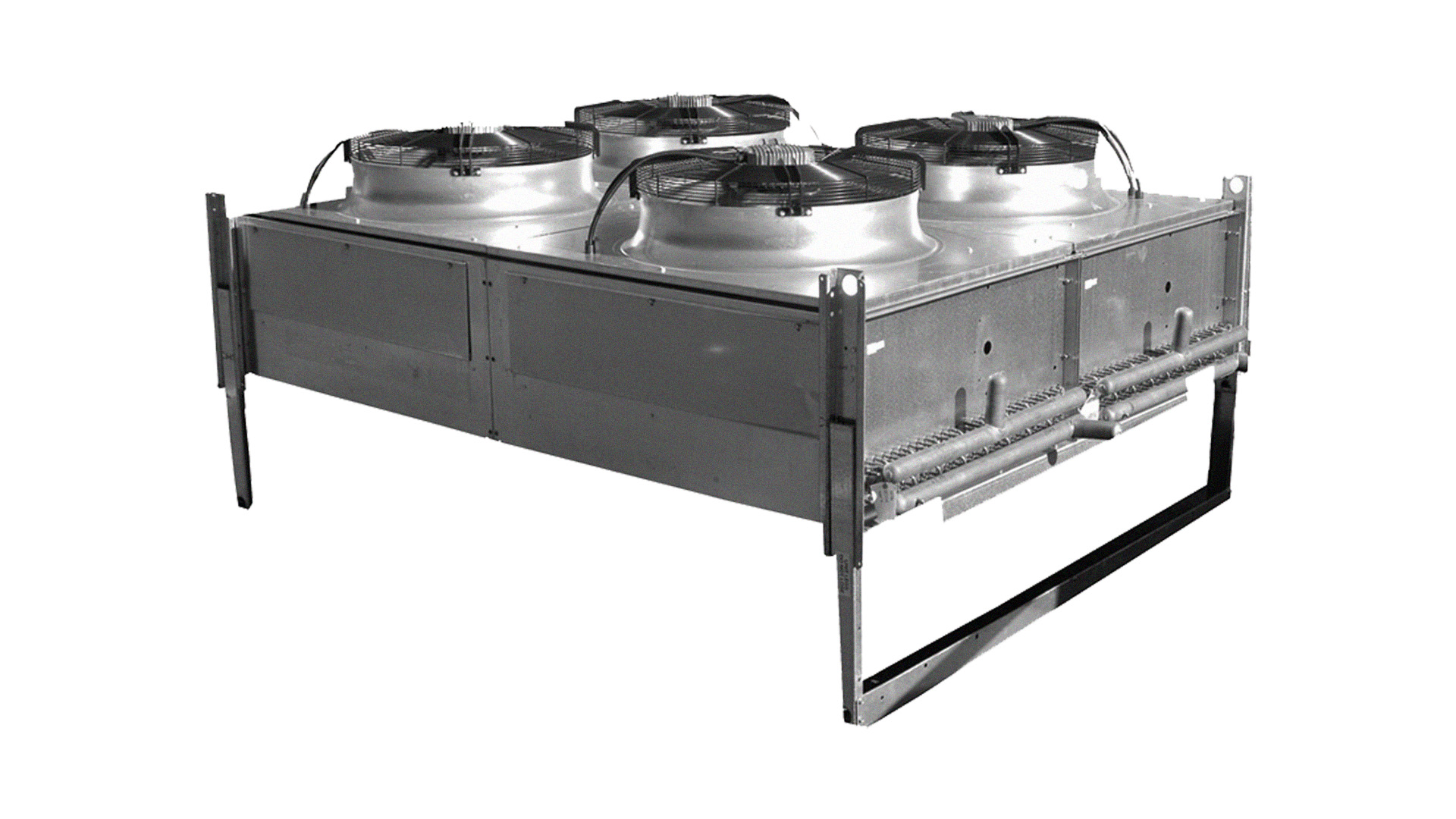

List Price: US$ 87,26111 to 264 ton Air-Cooled Condensers feature increased energy efficiency and reduced sound levels sought after by the supermarket and grocery industry. Traditional condensers using 1140 RPM motors offer increased capacities, but cannot meet the low sound and high energy efficiency standards in demand today . These units are a great fit for many applications due to the combination of increased operating capacities, low sound levels and high energy efficiency. Choosing a model with the patented QuietEdge™ fan blade or variable speed EC motor makes this product more energy efficient while increasing cost savings.
| General | |
|---|---|
| Product Brand | Climate Control |
| Product Type | Air-Cooled Condensers |
| Product Category | Condensers and Gas Coolers |
| Product Style | 11 - 264 Ton |
| Product Classification | current |
| Motor Voltage | 460/3/60 |
| Motor Type | Rail-Mount VSEC Motor 1140 RPM |
| Fan Config | 2x2 |
| Max No. of Feeds | 28 |
| Performance | |
|---|---|
| Refrigerant Type | R-404A |
| Capacity MBH F TD | 19 |
| Fins Per Inch | 8 FPI |
| No Of Fans | 4 |
| CFM | 41,000 |
| Motor | Rail-Mount VSEC Motor 1140 RPM |
| Motor RPM | 1140 |
| Sound Data DBA @ 10ft | 78.3 |
| Physical | |
|---|---|
| Height (In.) | 49.13 |
| Depth In | 88 |
| Length (in.) | 112 |
| Approx Net Weight (lbs) | 1,280 |
| Electrical Ratings | |
|---|---|
| MCA | 15 |
| MOPD | 20 |
| Unit Kw | 7.8 |
| Motor FLA | 13.2 |
| Motor Voltage | 460/3/60 |
| Connections | |
|---|---|
| Connection In. | 2 @ 1 3/8 |
| Fan Cycling | |
|---|---|
| No Of Fans | 4 |
| Design TD | 15 |
| Coil Protection Options | |||
|---|---|---|---|
| Option Code | Option Description | List Price Adder (US$) | Notes |
| CS.BRZ | Bronz-Glow Coating | $number.format("integer", $optionsPricing.map.get($oj.get('option_code'))) | |
| CS.CPR | Copper Fin Coil | $number.format("integer", $optionsPricing.map.get($oj.get('option_code'))) | |
| CS.ELF | ElectroFin Coils | $number.format("integer", $optionsPricing.map.get($oj.get('option_code'))) | |
| COIL.018 | BohnGuard Fin Protection | 4,415 | |
| COIL.018 | Polyester Fin Protection | 4,415 | |
| COIL.018 | ProKote Fin Protection | 4,415 | |
| COIL.018 | ProKote™ Fin Protection | 4,415 | |
| Fins Per Inch (FPI) Options | |||
|---|---|---|---|
| Option Code | Option Description | List Price Adder (US$) | Notes |
| COIL.001 | 8 FPI | -2,764 | |
| COIL.003 | 12 FPI | 2,764 | |
| COIL.004 | 14 FPI | 5,565 | |
| COIL.STD | 10 FPI | $number.format("integer", $optionsPricing.map.get($oj.get('option_code'))) | |
