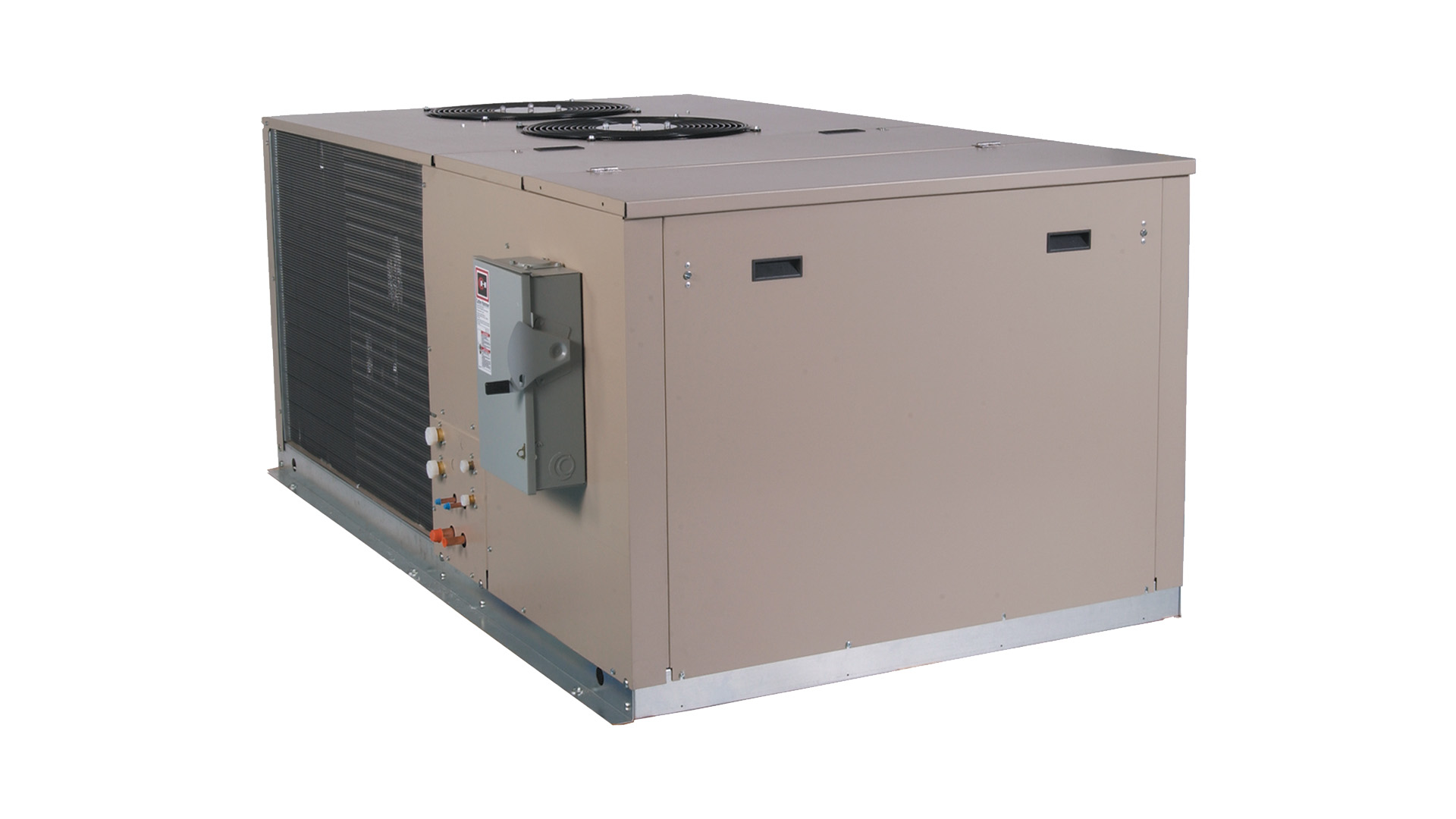

FlexPack™ multiple compressor condensing units offer the flexibility for a wide range of applications. The modular design accommodates up to three compressors (1/2 to 6 HP Hermetic or Scroll), is available in 230/1/60 or 230/3/60, and with R-407A/C/F, R-448A/R-449A and R-404A models for medium or low temperature applications. Perfect for restaurants and convenience stores where remote condenser circuits are needed for ice machines, drink dispensers, display cases and more, this product significantly reduces air conditioning energy costs by reducing the heat load in the space. Features of this line provide outstanding results for the refrigeration system and bottom line.


Features and Benefits

Flexible Design
  • Modular design accommodates up to 3 compressors (1/2 to 6 HP Hermetic or Scroll)
  • System capacity range from 5 to 18 HP (dependent upon cabinet size)
  • Small footprint
  • Rooftop AC style appearance to blend with existing equipment
Reduced Installation Costs and Easy Serviceability
  • Hinged access panels to refrigeration and electrical components
  • Single roof penetration
  • Single-point main power
  • Clean and intuitive electrical and piping layout
Durable & Reliable
  • 14-gauge galvanized steel frame
  • Industrial grade, painted galvanized steel
  • 1-year parts warranty
  • 4-year optional compressor warranty
Increased Energy Efficiency & Reduced Sound
  • Remote condenser circuits reduce heat load into space resulting in lower air conditioning energy costs
  • Recessed, vertical-discharge, flush-mounted 18" fans with 1100 RPM motors reduce noise levels

Components

  • Fixed high pressure switch
  • Fixed low pressure switch on medium and high temperature compressor modules
  • Adjustable low pressure switch on low temperatures modules
  • Suction service ports on all modules
  • Suction accumulator (CS & CF extended temperature compressors)
  • Vertical receiver in 6" x 12" or 6" x 27" sizes
  • Sealed type liquid line drier and suction filter
  • Head pressure control valve
  • Aluminum fin coils
  • Crank case heater
  • Sight glass

Options

  • Beacon II Refrigeration System available
  • Defrost timer (air or electric)
  • Individual compressor circuit breakers or fuses
  • Unit fused disconnect
  • Copper finned coils
  • Polyester coated fins
  • Liquid line solenoid valve
  • Adjustable low pressure switch on high and medium temperature compressors

Notes

For more information, please contact your local Sales Representative or Account Engineer.


Certifications

  • UL Listed US & Canada
