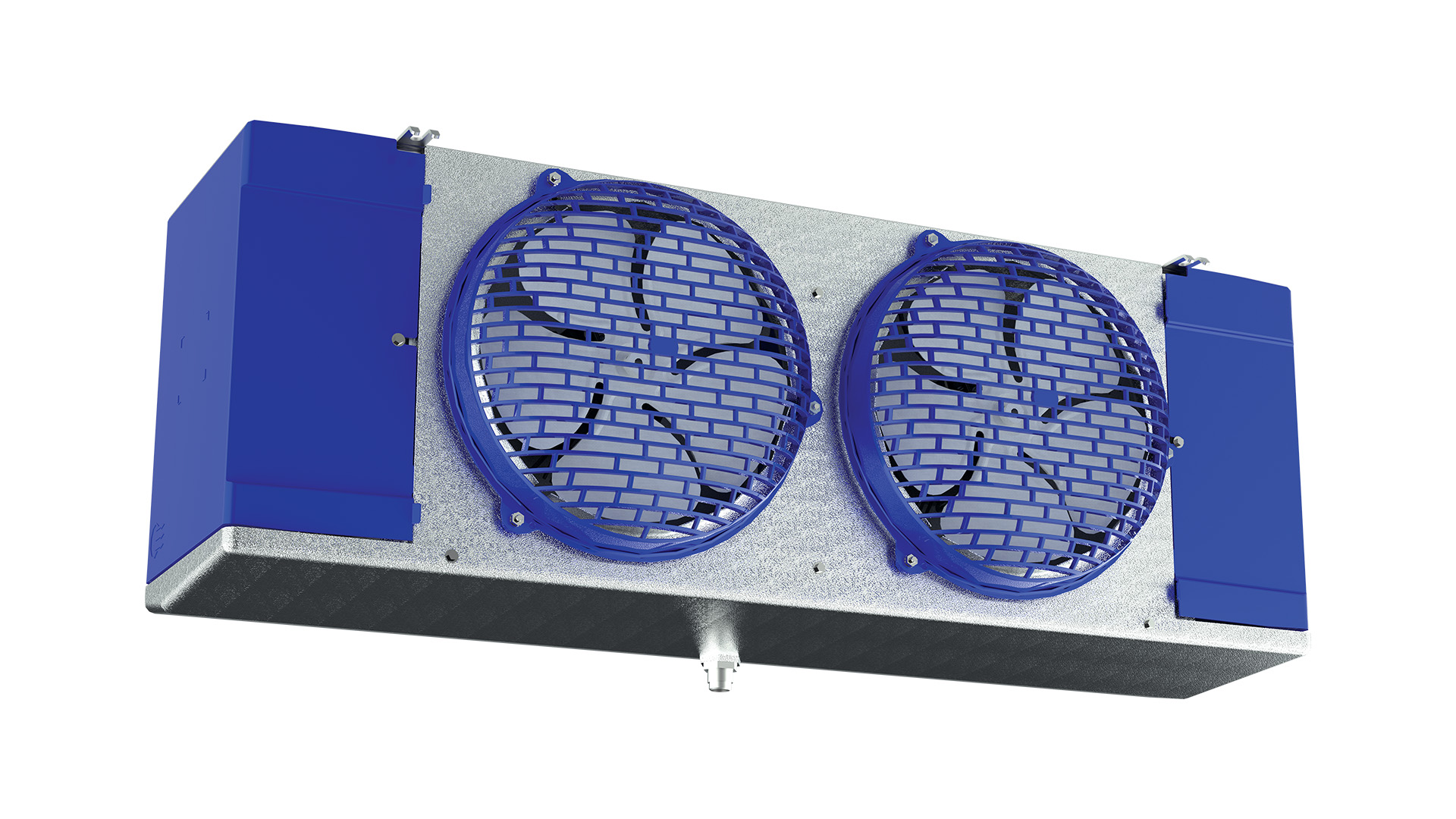

Heatcraft Low Profile Unit Coolers have been engineered for efficiency and improved air circulation. Features such as hinged and removable access panels, a hinged drain pan and an easy service motor mount reduce maintenance time and cost.

  • UL Listed EPH
  • NSF
  • UL Listed US & Canada

Nomenclature

Low Profile Nomenclature

Features & Benefits

Cabinet
  • Hinged, removable panels allows for easy access to components.
Coil
  • Designed for higher efficiency, easy installation and replacement.
  • Fixed-defrost termination for electric, adjustable defrost termination for hot gas.
Control Options
  • intelliGen™ Refrigeration Controller (iRC) – Factory mounted, tested and calibrated with an electronic expansion valve, pressure transducer, temperature sensors, control board and user interface, door sensor, product load input and alarm output.
    • Optional field installable intelliGen™ Webserver Card (iWC) enables local and remote monitoring on any smart phone, tablet or PC.
    • Optional field installable intelliGen™ Integration Card (iIC) enables connectivity to BACnet and Modbus.
  • Quick Response Controller units include factory mounted electronic expansion valve, pressure transducer, temperature sensors and control board.
  • Beacon II™ units include factory mounted electronic expansion valve, pressure transducer, temperature sensors and control board.
Motors
  • Motors plug into wiring harness for easier servicing.
    • Dual-speed EC motors standard on Air Defrost models.
    • Single-speed EC motors standard on Electric Defrost & Hot Gas Defrost models.
Drain Pan
  • Large diameter drain hole (3/4” ID) located toward the back of the unit.
  • Extended drain pan heaters provide more uniform defrost throughout the drain pan and additional heat in end compartments.
  • Hinged, removable drain pans allow for easy and safe access (3 to 6 fan units only).
Browse Catalog

Applications

  • Supermarkets
  • Convenience stores
  • Small cold rooms
  • Restaurants
