bohn Model : BEM0125BC6EMAB0500   current

List Price: US$ 15,788

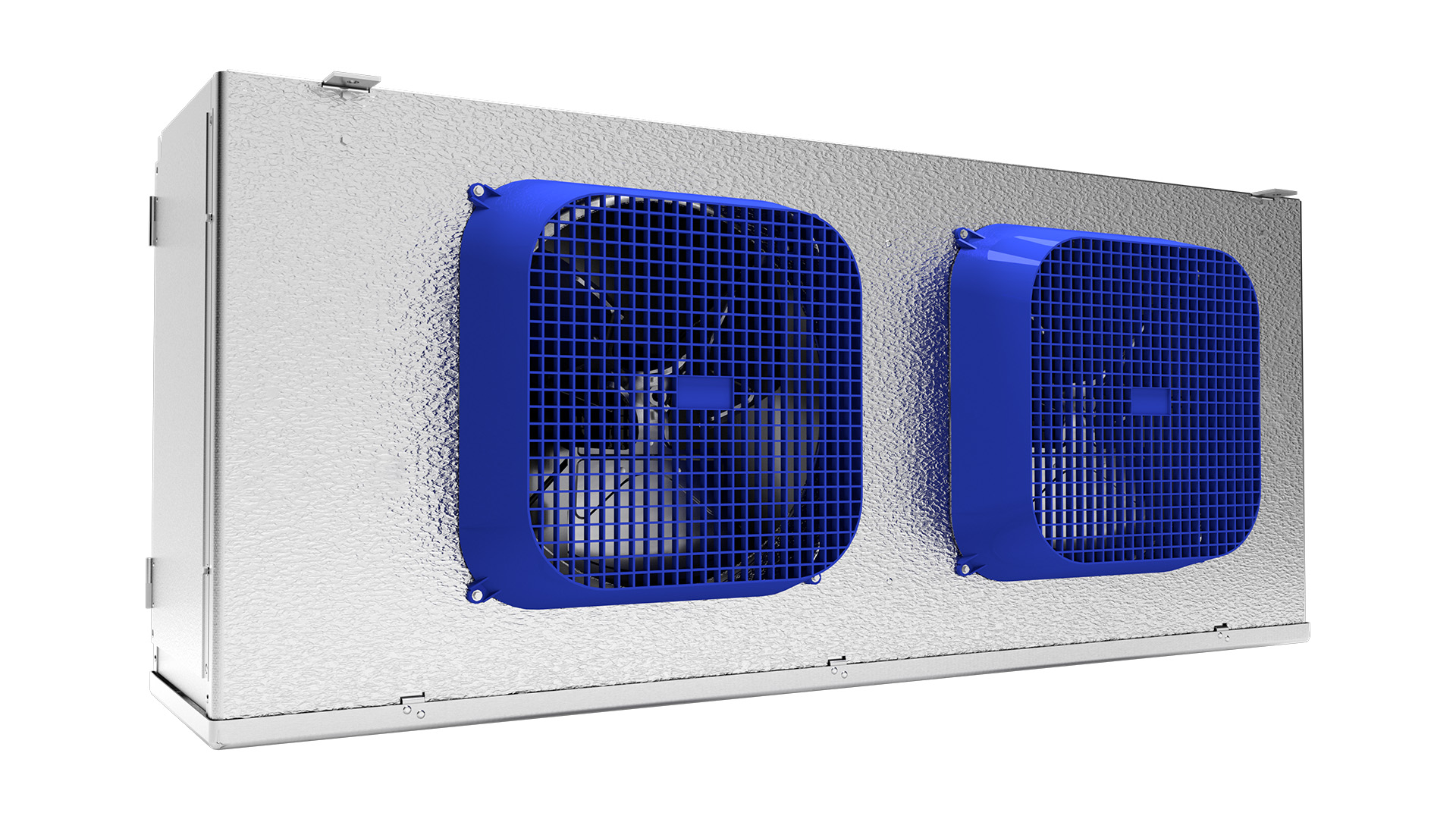

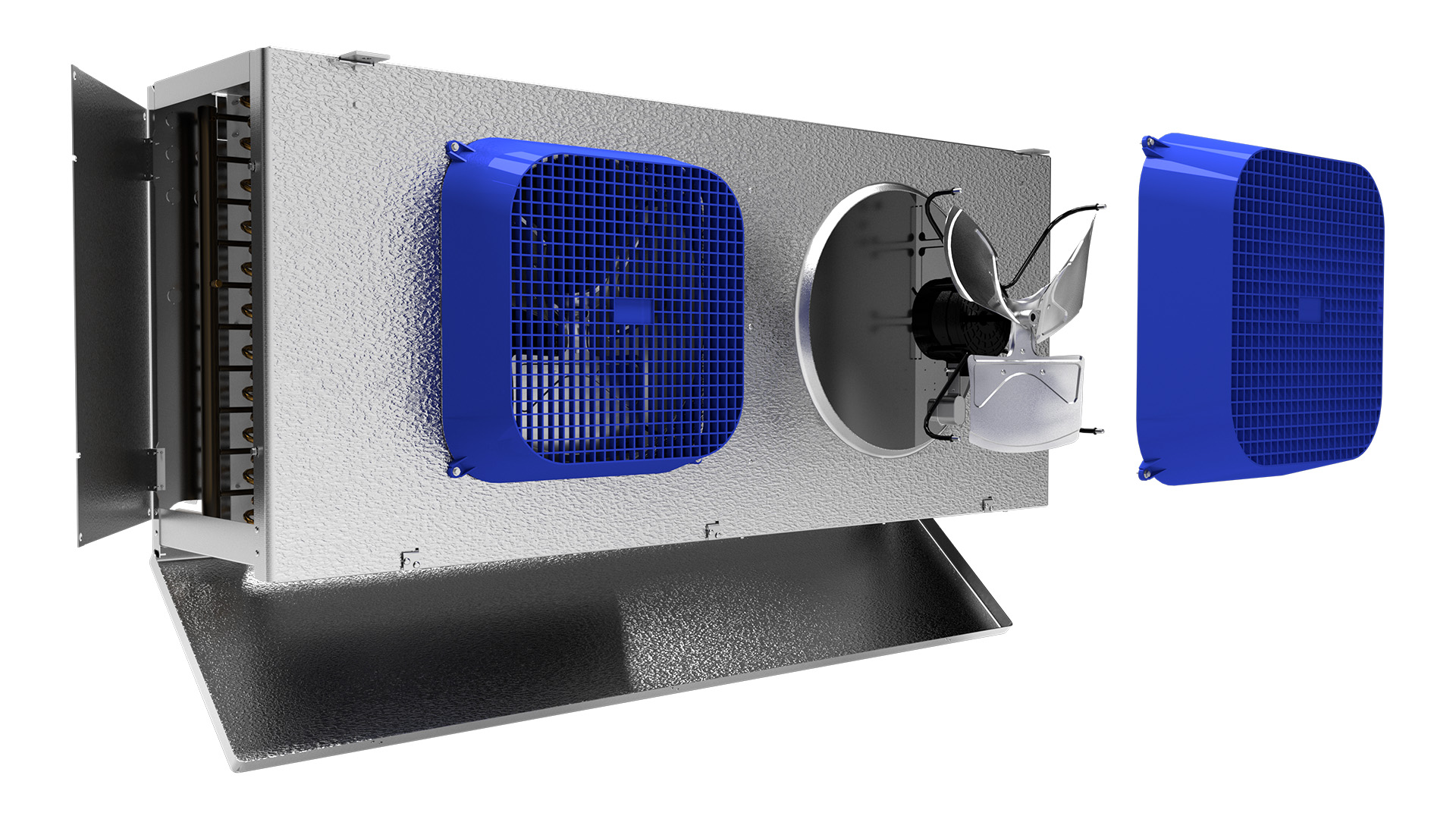

Heatcraft Medium Profile Unit Coolers are designed for efficiency and come with two-speed EC motors. They have an angled drain fitting, allowing for increased shelving for more product storage. Their hinged and removable access panels and hinged drain pans make service easier and more accessible.

  • UL Listed EPH
  • UL Listed US & Canada

Quick Links

General
Product Brand Bohn
Product Type Walk In Unit Coolers
Product Category Unit Coolers
Product Style Medium Profile
Product Classification current
Application freezer
Voltage 208-230/1/60
Defrost Type Electric Defrost
FPI 6
Dual Rated TRUE
No Of Fans 1
Performance
Rating Point F 10°F TD -20°F SST
Refrigerant co2
Application Capacity 11,200
CFM 2,250
Physical
Height (In.) 28 5/8
Depth In 20 1/4
Length (in.) 39 7/8
Est Net Weight (lbs) 143
Est Shipping Weight (lbs) 253
Fins Per Inch 6
Electrical Ratings
Motor Type 2-Speed EC
No Of Fans 1
Motor HP 1/4
Unit MCA 15
Unit MOPD 20
Motor Voltage 208-230/1/60
Motor Watts 208
Motor Amps 1.7
Drain Pan Voltage -
Drain Pan Amps -
Drain Pan Watts -
Defrost Heater Voltage 208-230/1/60
Defrost Heater Amps 11.9
Defrost Heater Watts 2730
Connections
Coil Inlet OD 8-Mar
Suction Od 8-Mar
External Equalizer OD N/A
Drain MPT 4-Mar
Fan Diameter (in) 18
Fan Diameter (mm) 457
Air Throw Standard (ft) 60
Air Throw Standard (m) 18.5
Air Throw With Collar (ft) 45
Air Throw With Collar (m) 14
FPI 6

Package Code Package Description List Price (US$) Notes
B0502 Sporlan EEV (120V) with 1/4ÓMPT Transducer Connection (Pressure Transducer not included) + Filter Drier 15,788
B0504 Danfoss EEV (120V) with Danfoss Pressure Transducer + Filter Drierr 15,788
B0505 Danfoss EEV (120V) with CPC Pressure Transducer 15,788
B0507 Sporlan EEV (120V) with Microthermo Pressure Transducer + Filter Drier 15,788
B0506 Danfoss EEV (120V) with CPC Pressure Transducer + Filter Drier 15,788
B0501 Danfoss EEV (120V) with 1/4ÓMPT Transducer Connection (Pressure Transducer not included) + Filter Drier 15,788
B0503 Danfoss EEV (120V) with Danfoss Pressure Transducer 15,788

Shipped Loose
Part Type Part Number Part Description List Price (US$)
Transducer 28977045 CPC Transducer 4,725
Transducer 28977108 Pressure Tansducer 3,889
Electronic Expansion Valves 29390101 Valve Expansion Ser-A 2,806
Electronic Expansion Valves 29390201 Valve Expansion Ser-Aa 2,358
Transducer 28912401 Cable Pressure Transducer 5M 686
Sensors 22524607 Temp Sensor Orange - Def Term 157
Filter Drier 2210059 Filter Drier C-084-S 1/2SOLDER 171
Sensors 22524605 Sensor Temp Cpc Red - Suc Temp 213
Filter Drier 22103301 Filter Drier DMT 084S, R744 CO2 812
Filter Drier 22103201 Filter Drier DMT 083S, R-744 CO2 625
Electronic Expansion Valves 29330610 Valve Expansion Akv 10P0 W/O Coil 2,727
Electronic Expansion Valves 29330601 Valve Expansion Akv 10P1 W/O Coil 2,727
Electronic Expansion Valves 29330602 Valve Expansion Akv 10P2 W/O Coil 2,727
Electronic Expansion Valves 29330603 Valve Expansion Akv 10P3 W/O Coil 2,727
Electronic Expansion Valves 29330605 Valve Expansion Akv 10P5 W/O Coil 2,727
Electronic Expansion Valves 29326004 Valve Expansion Akv 10Ps4 W/O Coil 3,046
Electronic Expansion Valves 29326005 Valve Expansion Akv 10Ps5 W/O Coil 3,046
Electronic Expansion Valves 29326006 Valve Expansion Akv 10Ps6 W/O Coil 3,159
Electronic Expansion Valves 29326007 Valve Expansion Akv 10Ps7 W/O Coil 3,159
Electronic Expansion Valve Coil 29321303 Valve Expansion Elec Xv Coil 24Vac 932
Sensors 28923073 Microthermo Probe #23-0073 - Ent Air 550
Electronic Expansion Valve Coil 29321201 Valve Expansion Elec Coil 208/240Vac 544
Transducer 28912701 Slo- Trans Press Microthermo 952-0008 2,200
Electronic Expansion Valve Coil 29378101 Valve Expansion Elec Xv Coil 120V 16W 542
Sensors 22527201 Sensor Temperature Sensor Danfoss Ak11 433
Filter Drier 4600C Filter Drier 3/8" ODF EK-033S (22101711) 214
Electronic Expansion Valves 29389401 Valve Expansion Ser-B Cable With Strippe 1,934
Electronic Expansion Valves 29389601 Valve Expansion Ser-C 4X5 Odf-10'-S, 805 1,934
Electronic Expansion Valves 29389701 Valve Expansion Ser-D 4X5 Odf-10'-S, 805 1,934
Electronic Expansion Valves 29389801 Valve Expansion Ser-D 4X7Odf-10'-S, 8052 1,934
Sensors 22524602 Temp Sensor Cpc Bl5011125, Blue - Ent Air 157
Sensors 22524606 Temp Sensor Cpc Green (20 Ft) - Leave Air 847
Sensors 28923074 Sensor Microthermo Temp 23-0076 - Suc Temp 367
Drain Line Heaters 5508Q 6 ft. Drain Line Heater (208-230V 42 Watts) 240
Defrost Control 4267W Adjustable Defrost Control/Fan Delay Switch 469
Drain Line Heaters 5594P 12 ft. Drain Line Heater (208-230V 84 Watts) 321
Drain Line Heaters 5508Q 6 ft. Drain Line Heater (208-230V, 42 Watts) 240
Sensors 28923072 Sensor Microthermo Probe #23-0072 - Def Term 590
Drain Line Heaters 5594P 12 ft. Drain Line Heater (208-230V, 84 Watts) 321
Drain Line Heaters 5595P 18 ft. Drain Line Heater (208-230V 126 Watts) 422
Drain Line Heaters 5596P 36 ft. Drain Line Heater (208-230V 252 Watts) 478
Drain Line Heaters 5596P 36 ft. Drain Line Heater (208-230V, 252 Watts 478
Drain Line Heaters 5597P 60 ft. Drain Line Heater (208-230V 420 Watts) 859
Drain Line Heaters 5595P 18 ft. Drain Line Heater (208-230V, 126 Watts) 422
Drain Line Heaters 5597P 60 ft. Drain Line Heater (208-230V, 420 Watts) 859
Defrost Controls 4267W Adjustable Defrost Control/Fan Delay Switch 469
