bohn Model : BCD0260LCABXA0000 current

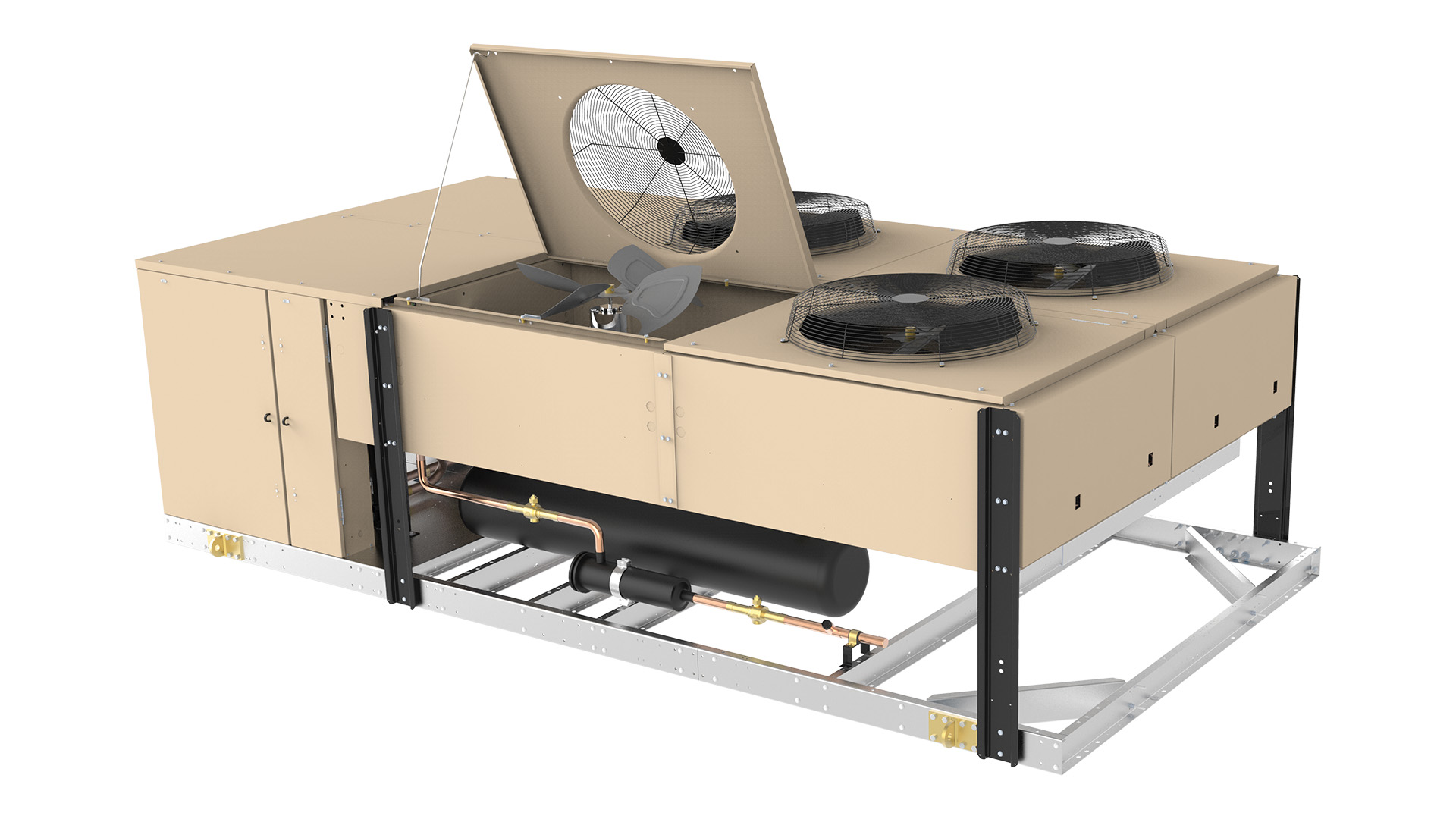

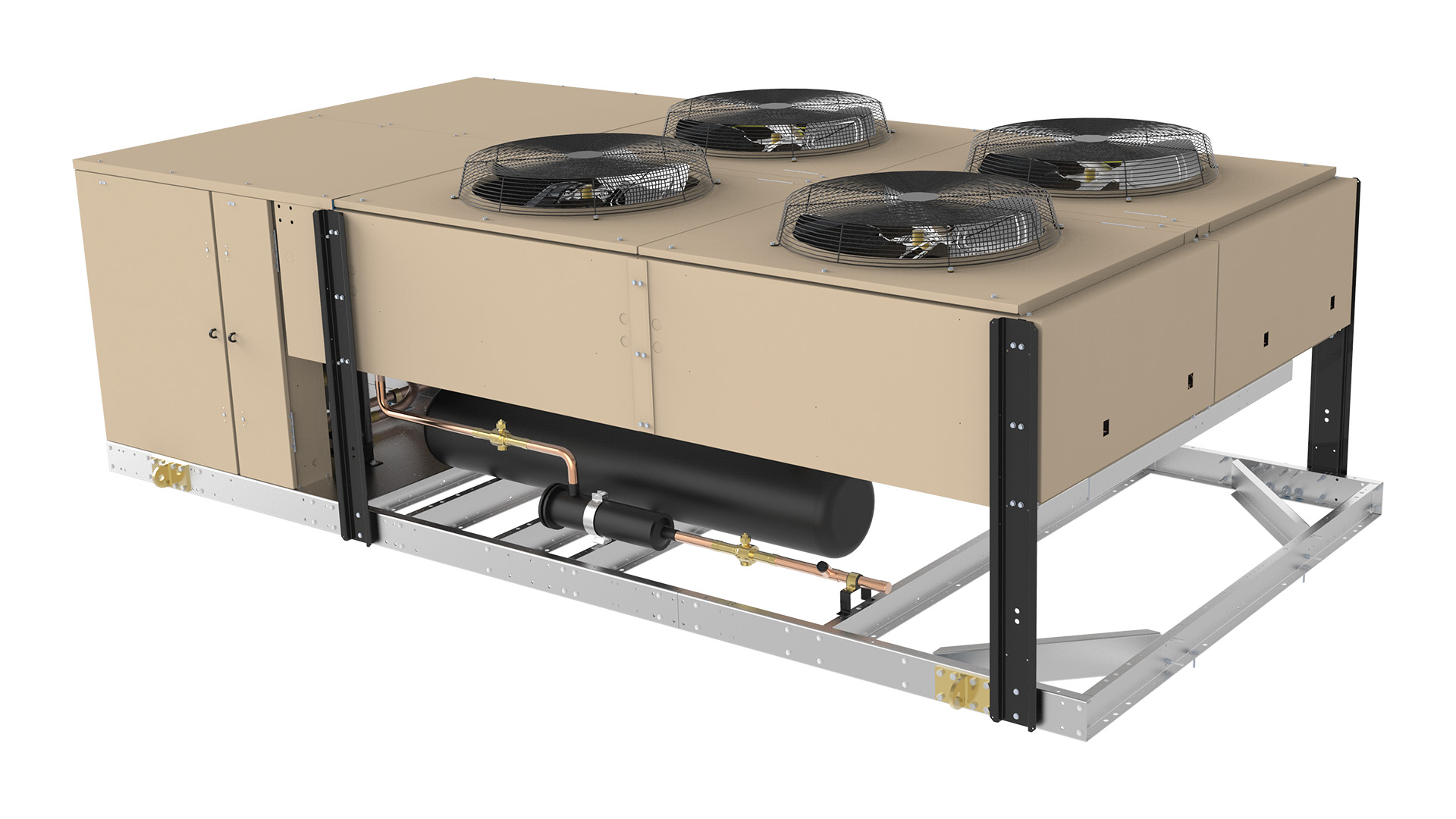

List Price: US$ 151,04724 to 100 HP vertical air discharge condensing units with Copeland and Bitzer dual Semi-Hermetic reciprocating compressors are designed for flexibility and serviceability. They can be configured as dual-circuited or parallel piped, and are ideal for medium or low temperature applications with either pre-configured option packages or custom configurations for specific applications. Each unit is approved for multiple refrigerants and can be configured to meet minimum AWEF, Title 24 or other regulations.
| R404A | R407A | R407C | R407F | R448A | R449A | R507A | ||
|---|---|---|---|---|---|---|---|---|
| freezer | Application Capacity | 128,960 | 101,220 | N/A | 101,220 | 109,420 | 109,420 | 128,960 |
| AWEF | - | - | NA | 3.15 | - | - | 3.15 | |
| Meets Minimum AWEF | ||||||||
| General | |
|---|---|
| Product Brand | Bohn |
| Product Type | Air-Cooled Condensing Units |
| Product Category | Condensing Units and Packaged Systems |
| Product Style | 24 - 100 HP Dual Vertical Air Discharge |
| Product Classification | current |
| Application | Outdoor Dual Vertical |
| Operating Range | Low Temperature |
| Compressor Type | Semi-Hermetic |
| Compressor P N | 4JE-15Y |
| Voltage | 208-230/3/60 |
| Refrigerant Type | R404A/R407A/R407C/R448A/R507A/R407F/R449A |
| Performance | |
|---|---|
| Rating Point | 95°F Ambient -20°F SST |
| Ambient Temperature F | 95°F |
| Suction Temperature F | -20°F |
| Capacity BTUH | 128,960 |
| Meets Minimum Awef | No |
| Refrigerant | R404A |
| Physical | |
|---|---|
| Height (In.) | 55.6 |
| Depth In | 170.7 |
| Width (In.) | 92.2 |
| Approx Net Weight (lbs) | 3,620 |
| Electrical Ratings | |
|---|---|
| Compressor Model Number | 4JE-15Y |
| Power | 208-230/3/60 |
| Compressor RLA | 55.3205128205128 |
| Compressor LRA | 352 |
| Fan Motor Qty | 4 |
| Fan Motor Fla | 14 |
| MCA | 138.471153846154 |
| MOPD | 175 |
| Remote Loads 2 Contactors High Amps Evap Fans | 22 |
| Remote Loads 2 Contactors High Amps Defrost Htrs Amps | 64 |
| Remote Loads 2 Contactors High Amps Electric Defrost Mca | 160.471153846154 |
| Remote Loads 2 Contactors High Amps Electric Defrost Mopd | 200 |
| Remote Loads 1 Contractors High Amps Evap Fans | 15 |
| Remote Loads 1 Contractors High Amps Defrost Htrs Amps | 48 |
| Remote Loads 1 Contractors High Amps Electric Defrost Mca | 153.471153846154 |
| Remote Loads 1 Contractors High Amps Electric Defrost Mopd | 200 |
| Connections | |
|---|---|
| Connection Type | Parallel Piped |
| Liquid Od | 1-3/8 |
| Suction Od | 3-1/8 |
| Package Code | Package Description | List Price (US$) | Notes |
| A0100 | Defrost Timer - Air | 152,989 | |
| A0400 | Beacon II/intelliGen� | 157,581 | |
| A1002 | Lqd Std. Replacable core filter-drier + Replacable core Suction line filter+Accumulator | 168,049 | |
| A1003 | Replacable core Suction-line filter + Accumulator | 166,405 | |
| A1004 | Pr. Controlled fan cycling + Replacable core Suction-line filter + Accumulator | 172,575 | |
| A1300 | Oil Separator with discharge line check valve | 156,755 | |
| A1400 | Phase loss monitor | 153,039 | |
| A1500 | Parallel Piping | 188,514 |
| Mechanical Options | |||
|---|---|---|---|
| Option Code | Option Description | List Price Adder (US$) | Notes |
| SUC.FILTER-1 | Filter | 4,455 | |
| SUC.FILTER_PP-1 | Filter | N/A | |
| SUC.FILTER_RC-1 | RC Filter | 5,833 | |
| SUC.FILTER_RC_PP-1 | RC Filter | Standard | |
| SUC.ACCUMULATOR-1 | Accumulator | 9,525 | |
| SUC.ACCUMULATOR_PP-1 | Accumulator | Standard | |
| MUF.MUFFLER | Discharge mufflers | 1,620 | |
| LIQ.FILTER_SG_RCFD-1 | RC Filter Drier and Sight Glass | 1,644 | |
| LIQ.FILTER_SG_RCFD_PP-1 | RC Filter Drier and Sight Glass | Standard | |
| DIS.HRV_CHECK VLV-1 | 3 way heat reclaim valve and check valve | 5,896 | |
| DIS.HRV_CHECK VLV_PP-1 | 3 way heat reclaim valve and check valve | Call Factory | |
| LIQ.FILTER_SG_SV-1 | Filter Drier Sight Glass and Solenoid Valve | 3,304 | Not recommended on applications with line runs more than 25 feet. |
| LIQ.FILTER_SG_RCFD_SV_PP-1 | Filter Drier Sight Glass and Solenoid Valve | 1,773 | Not recommended on applications with line runs more than 25 feet. |
| DIS.OIL SEP_CHECK VLV-1 | Oil separators with discharge line check valves | 5,708 | |
| DIS.OIL SEP_CHECK VLV_PP-1 | Oil separators with discharge line check valves | Standard | |
| REC.STD RECEIVER_LOW AMB-1 | Heated & Insulated Receiver with Low Pressure Bypass | 9,020 | |
| UNL.ONE STEP COMP UNL | Compressor unloading with pressure control for 1 cyl. bank | 5,862 | |
| Electrical Options | |||
|---|---|---|---|
| Option Code | Option Description | List Price Adder (US$) | Notes |
| FCY.ADJ PRESSURE-1 | Adjustable Pressure | 6,170 | Fan closest to the header is not cycled. |
| FCY.ADJ PRESSURE_PP-1 | Adjustable Pressure | 4,991 | Fan closest to the header is not cycled. |
| PLM.PLM | Phase Loss Monitors | 1,992 | |
| FCY.ADJ TEMP-1 | Adjustable Temperature | 6,170 | Fan closest to the header is not cycled. |
| FCY.ADJ TEMP_PP-1 | Adjustable Temperature | 4,991 | Fan closest to the header is not cycled. |
| TDR.COMP ANTI SHORT | Anti-short Cycling Timers | 2,299 | |
| TDR.COMP ANTI SHORT_PP | Anti-short Cycling Timers | 1,148 | |
| CBK.002-2 | Compressor Circuit Breakers | 9,115 | No CBK options are available for the 0800 units. |
| HPS.MANUAL RESET | Manual Reset High Pressure Switches | 1,095 | |
| MTR.VSEC_TITLE 24-4L-1 | Variable Speed EC w/ Title 24 motor kit | 66,043 | |
| MTR.VSEC_TITLE 24-4L-2 | Variable Speed EC w/ Title 24 motor kit | 66,043 | |
| Coil Options | |||
|---|---|---|---|
| Option Code | Option Description | List Price Adder (US$) | Notes |
| CSB.CPR RTPF COIL-1 | Copper condenser fins | Call Factory | |
| CS.PRO RTPF COIL-1 | Round Tube Plate Fin BohnGuard/ProKote/Polyester Coil | 5,796 | |
| Defrost Options | |||
|---|---|---|---|
| Option Code | Option Description | List Price Adder (US$) | Notes |
| DFT.INTELLIGEN_BEACON | Beacon II/intelliGen™ | 6,534 | |
| DFT.TIMER_1 CONT | Electric Defrost Kit for system with one evaporator per compressor circuit | 7,914 | Includes (1) electric defrost timer (1) heater & (1) fan contactors terminal strip |
| DFT.TIMER_1 CONT-1 | Electric Defrost Kit for system with one evaporator per compressor circuit | 7,914 | Includes (1) electric defrost timer (1) heater & (1) fan contactors terminal strip and fusing. 48 amp maximum heater load per heater contactor |
| DFT.TIMER_1 CONT_PP | Electric Defrost Kit for system with one evaporator per compressor circuit | 6,946 | Includes (1) electric defrost timer (1) heater & (1) fan contactors terminal strip |
| DFT.TIMER_1 CONT_PP-1 | Electric Defrost Kit for system with one evaporator per compressor circuit | 6,946 | Includes (1) electric defrost timer (1) heater & (1) fan contactors terminal strip and fusing. 48 amp maximum heater load per heater contactor |
| DFT.TIMER_2 CONT | Electric Defrost Kit for system with two evaporators per compressor circuit | 13,502 | Includes (1) electric defrost timer (2) heater & (1) fan contactors terminal strip |
| DFT.TIMER_2 CONT-1 | Electric Defrost Kit for system with two evaporators per compressor circuit | 13,502 | Includes (1) electric defrost timer (2) heater & (1) fan contactors terminal strip and fusing. 48 amp maximum heater load per heater contactor |
| DFT.TIMER_2 CONT_PP | Electric Defrost Kit for system with two evaporators per compressor circuit | 12,588 | Includes (1) electric defrost timer (2) heater & (1) fan contactors terminal strip |
| DFT.TIMER_2 CONT_PP-1 | Electric Defrost Kit for system with two evaporators per compressor circuit | 12,588 | Includes (1) electric defrost timer (2) heater & (1) fan contactors terminal strip and fusing. 48 amp maximum heater load per heater contactor |
| DEF.XXX1 | Fuses for electric defrost kit for system with one evaporator per compressor circuit | 1,580 | |
| DEF.XXX2 | Fuses for electric defrost kit for system with two evaporators per compressor circuit | 3,164 | |
