• Unit Coolers
  • Walk In Unit Coolers
  • Medium Profile

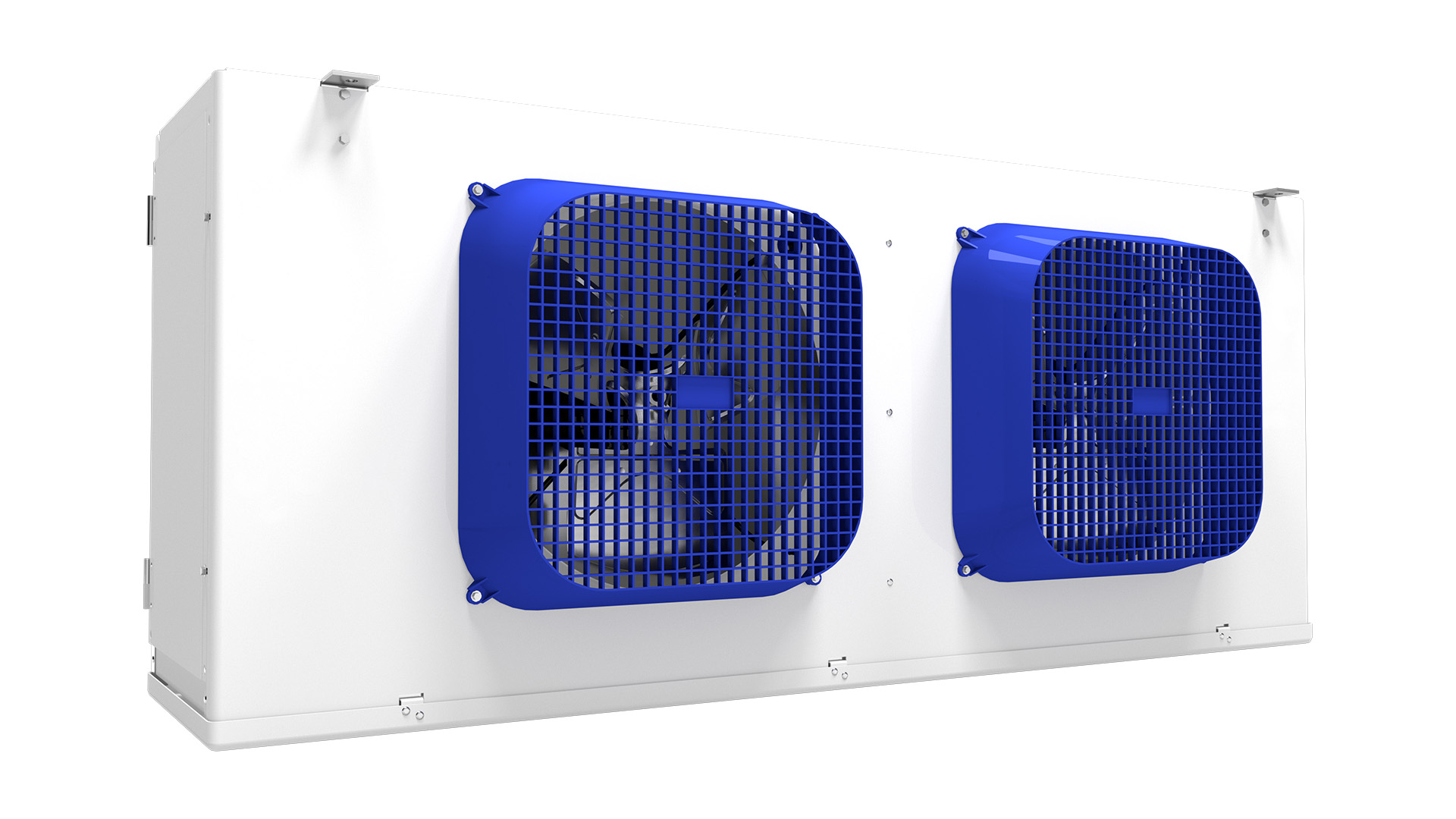

larkin Model : LEM0405AC8APAB0500   current

List Price: US$ 19,792

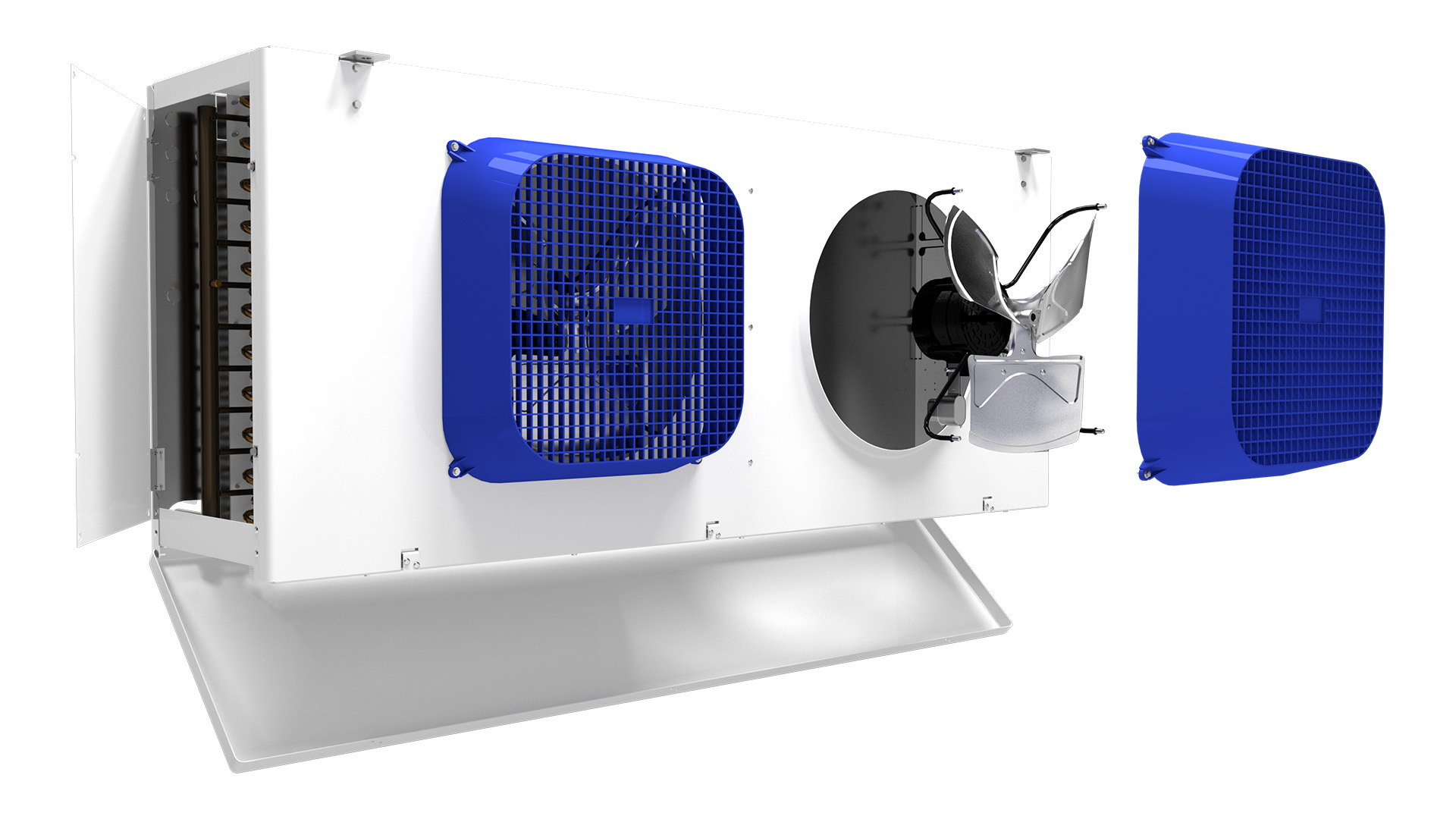

Heatcraft Medium Profile Unit Coolers are designed for efficiency and come with two-speed EC motors. They have an angled drain fitting, allowing for increased shelving for more product storage. Their hinged and removable access panels and hinged drain pans make service easier and more accessible.

  • UL Listed EPH
  • UL Listed US & Canada

Quick Links

General
Product Brand Larkin
Product Type Walk In Unit Coolers
Product Category Unit Coolers
Product Style Medium Profile
Product Classification current
Application cooler
Voltage 115/1/60
Defrost Type Air Defrost
FPI 8
Dual Rated FALSE
No Of Fans 2
Performance
Rating Point F 10°F TD 25°F SST
Refrigerant co2
Application Capacity 29,500
CFM 4,100
Physical
Height (In.) 28 5/8
Depth In 20 1/4
Length (in.) 67 7/8
Est Net Weight (lbs) 184
Est Shipping Weight (lbs) 335
Fins Per Inch 8
Electrical Ratings
Motor Type PSC
No Of Fans 2
Motor HP 1/4
Unit MCA 15
Unit MOPD 20
Motor Voltage 115/1/60
Motor Watts 600
Motor Amps 8
Drain Pan Voltage -
Drain Pan Amps -
Drain Pan Watts -
Defrost Heater Voltage -
Defrost Heater Amps -
Defrost Heater Watts -
Connections
Coil Inlet OD 8-Mar
Suction Od 2-Jan
External Equalizer OD N/A
Drain MPT 4-Mar
Fan Diameter (in) 18
Fan Diameter (mm) 457
Air Throw Standard (ft) 60
Air Throw Standard (m) 18.5
Air Throw With Collar (ft) 45
Air Throw With Collar (m) 14
FPI 8

Package Code Package Description List Price (US$) Notes
B0502 Sporlan EEV (120V) with 1/4ÓMPT Transducer Connection (Pressure Transducer not included) + Filter Drier 19,792
B0504 Danfoss EEV (120V) with Danfoss Pressure Transducer + Filter Drierr 19,792
B0505 Danfoss EEV (120V) with CPC Pressure Transducer 19,792
B0507 Sporlan EEV (120V) with Microthermo Pressure Transducer + Filter Drier 19,792
B0506 Danfoss EEV (120V) with CPC Pressure Transducer + Filter Drier 19,792
B0501 Danfoss EEV (120V) with 1/4ÓMPT Transducer Connection (Pressure Transducer not included) + Filter Drier 19,792
B0503 Danfoss EEV (120V) with Danfoss Pressure Transducer 19,792

Shipped Loose
Part Type Part Number Part Description List Price (US$)
Transducer 28977045 CPC Transducer 5,037
Transducer 28977108 Pressure Tansducer 4,146
Electronic Expansion Valves 29390101 Valve Expansion Ser-A 2,991
Electronic Expansion Valves 29390201 Valve Expansion Ser-Aa 2,514
Transducer 28912401 Cable Pressure Transducer 5M 732
Sensors 22524607 Temp Sensor Orange - Def Term 168
Filter Drier 2210059 Filter Drier C-084-S 1/2SOLDER 182
Sensors 22524605 Sensor Temp Cpc Red - Suc Temp 227
Filter Drier 22103301 Filter Drier DMT 084S, R744 CO2 865
Filter Drier 22103201 Filter Drier DMT 083S, R-744 CO2 667
Electronic Expansion Valves 29330610 Valve Expansion Akv 10P0 W/O Coil 2,907
Electronic Expansion Valves 29330601 Valve Expansion Akv 10P1 W/O Coil 2,907
Electronic Expansion Valves 29330602 Valve Expansion Akv 10P2 W/O Coil 2,907
Electronic Expansion Valves 29330603 Valve Expansion Akv 10P3 W/O Coil 2,907
Electronic Expansion Valves 29330605 Valve Expansion Akv 10P5 W/O Coil 2,907
Electronic Expansion Valves 29326004 Valve Expansion Akv 10Ps4 W/O Coil 3,247
Electronic Expansion Valves 29326005 Valve Expansion Akv 10Ps5 W/O Coil 3,247
Electronic Expansion Valves 29326006 Valve Expansion Akv 10Ps6 W/O Coil 3,368
Electronic Expansion Valves 29326007 Valve Expansion Akv 10Ps7 W/O Coil 3,368
Electronic Expansion Valve Coil 29321303 Valve Expansion Elec Xv Coil 24Vac 994
Sensors 28923073 Microthermo Probe #23-0073 - Ent Air 587
Electronic Expansion Valve Coil 29321201 Valve Expansion Elec Coil 208/240Vac 580
Transducer 28912701 Slo- Trans Press Microthermo 952-0008 2,345
Electronic Expansion Valve Coil 29378101 Valve Expansion Elec Xv Coil 120V 16W 578
Sensors 22527201 Sensor Temperature Sensor Danfoss Ak11 462
Filter Drier 4600C Filter Drier 3/8" ODF EK-033S (22101711) 228
Electronic Expansion Valves 29389401 Valve Expansion Ser-B Cable With Strippe 2,062
Electronic Expansion Valves 29389601 Valve Expansion Ser-C 4X5 Odf-10'-S, 805 2,062
Electronic Expansion Valves 29389701 Valve Expansion Ser-D 4X5 Odf-10'-S, 805 2,062
Electronic Expansion Valves 29389801 Valve Expansion Ser-D 4X7Odf-10'-S, 8052 2,062
Sensors 22524602 Temp Sensor Cpc Bl5011125, Blue - Ent Air 168
Sensors 22524606 Temp Sensor Cpc Green (20 Ft) - Leave Air 903
Sensors 28923074 Sensor Microthermo Temp 23-0076 - Suc Temp 391
Drain Line Heaters 5508Q 6 ft. Drain Line Heater (208-230V 42 Watts) 256
Defrost Control 4267W Adjustable Defrost Control/Fan Delay Switch 500
Drain Line Heaters 5594P 12 ft. Drain Line Heater (208-230V 84 Watts) 343
Drain Line Heaters 5508Q 6 ft. Drain Line Heater (208-230V, 42 Watts) 256
Sensors 28923072 Sensor Microthermo Probe #23-0072 - Def Term 629
Drain Line Heaters 5594P 12 ft. Drain Line Heater (208-230V, 84 Watts) 343
Drain Line Heaters 5595P 18 ft. Drain Line Heater (208-230V 126 Watts) 450
Drain Line Heaters 5596P 36 ft. Drain Line Heater (208-230V 252 Watts) 509
Drain Line Heaters 5596P 36 ft. Drain Line Heater (208-230V, 252 Watts 509
Drain Line Heaters 5597P 60 ft. Drain Line Heater (208-230V 420 Watts) 916
Drain Line Heaters 5595P 18 ft. Drain Line Heater (208-230V, 126 Watts) 450
Drain Line Heaters 5597P 60 ft. Drain Line Heater (208-230V, 420 Watts) 916
Defrost Controls 4267W Adjustable Defrost Control/Fan Delay Switch 500
