bohn Model : BNED04A031 current

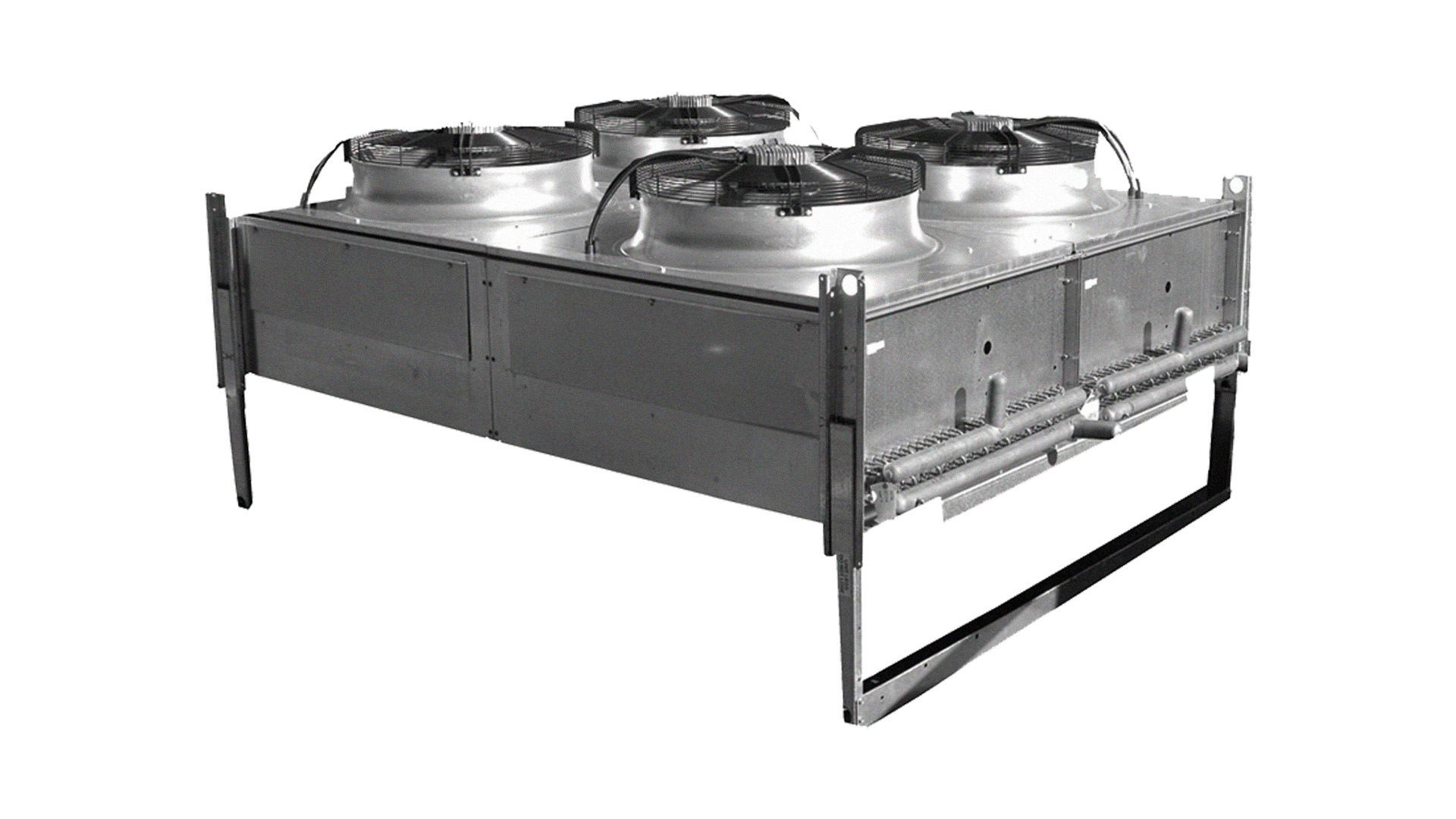

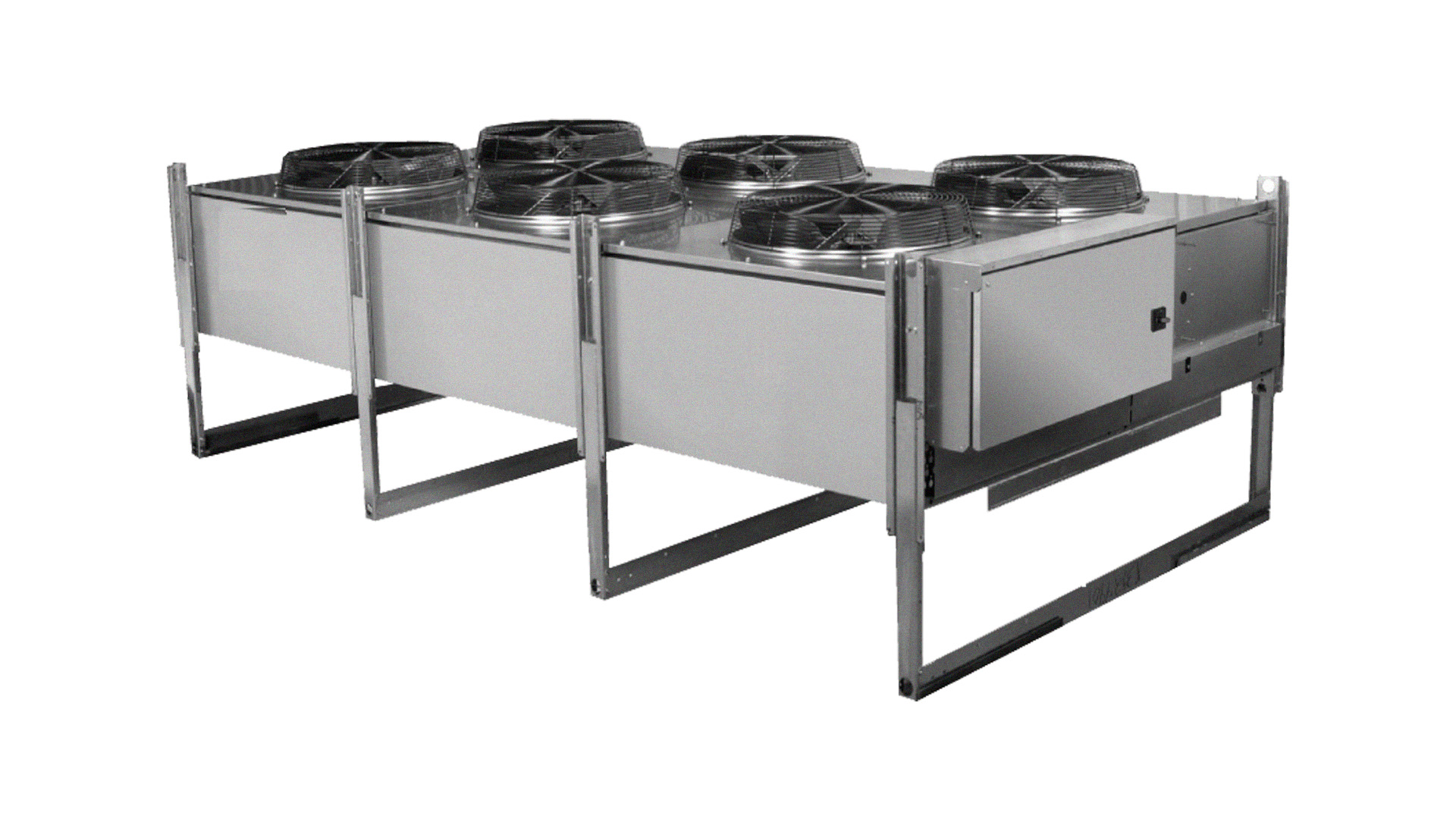

List Price: US$ 122,01911 to 264 ton Air-Cooled Condensers feature increased energy efficiency and reduced sound levels sought after by the supermarket and grocery industry. Traditional condensers using 1140 RPM motors offer increased capacities, but cannot meet the low sound and high energy efficiency standards in demand today . These units are a great fit for many applications due to the combination of increased operating capacities, low sound levels and high energy efficiency. Choosing a model with the patented QuietEdge™ fan blade or variable speed EC motor makes this product more energy efficient while increasing cost savings.
| General | |
|---|---|
| Product Brand | Bohn |
| Product Type | Air-Cooled Condensers |
| Product Category | Condensers and Gas Coolers |
| Product Style | 11 - 264 Ton |
| Product Classification | current |
| Motor Voltage | 460/3/60 |
| Motor Type | VSEC |
| Fan Config | 2x2 |
| Max No. of Feeds | 42 |
| Performance | |
|---|---|
| Refrigerant Type | R-404A |
| Capacity MBH F TD | 27 |
| Fins Per Inch | 8 FPI |
| No Of Fans | 4 |
| CFM | 44,100 |
| Motor | Venturi-Mount VSEC Motor |
| Motor RPM | 420 |
| Sound Data DBA @ 10ft | 72.9 |
| Physical | |
|---|---|
| Height (In.) | 49.13 |
| Depth In | 88 |
| Length (in.) | 112 |
| Approx Net Weight (lbs) | 1,390 |
| Electrical Ratings | |
|---|---|
| MCA | 15 |
| MOPD | 20 |
| Unit Kw | 8 |
| Motor FLA | 14 |
| Motor Voltage | 460/3/60 |
| Connections | |
|---|---|
| Connection In. | 2 @ 1 5/8 |
| Fan Cycling | |
|---|---|
| No Of Fans | 4 |
| Design TD | 15 |
| Mechanical Options | |||
|---|---|---|---|
| Option Code | Option Description | List Price Adder (US$) | Notes |
| CM.004 | Coil Access Panels Galv | -1,840 | |
| CM.004 | Galvanized Cabinet w/ Side Access | -1,840 | |
| LEGS.002 | Extended Legs 30" | 212 | |
| LEGS.003 | Extended Legs 36" | 212 | |
| LEGS.004 | Extended Legs 42" | 212 | |
| LEGS.005 | Unit Frame Std. Legs 20" | 4,320 | |
| LEGS.006 | Unit Frame Ext. Legs 42" | 4,746 | |
| LEGS.007 | Paratemp 20" | 107 | |
| LEGS.008 | Paratemp Extended Legs 30" | 318 | |
| LEGS.009 | Paratemp Extended Legs 36" | 318 | |
| LEGS.010 | Paratemp Extended Legs 42" | 318 | |
| Coil Protection Options | |||
|---|---|---|---|
| Option Code | Option Description | List Price Adder (US$) | Notes |
| CS.BRZ | Bronz-Glow Coating | $number.format("integer", $optionsPricing.map.get($oj.get('option_code'))) | |
| CS.CPR | Copper Fin Coil | $number.format("integer", $optionsPricing.map.get($oj.get('option_code'))) | |
| CS.ELEC | ElectroFin Coils | $number.format("integer", $optionsPricing.map.get($oj.get('option_code'))) | |
| COIL.018 | BohnGuard Fin Protection | 6,518 | |
| COIL.018 | Polyester Fin Protection | 6,518 | |
| COIL.018 | ProKote Fin Protection | 6,518 | |
| COIL.018 | ProKote™ Fin Protection | 6,518 | |
| Electrical Options | |||
|---|---|---|---|
| Option Code | Option Description | List Price Adder (US$) | Notes |
| MP.002 | Individual Motor Fuses | 1,662 | |
| MP.003 | Individual Circuit Breakers (230V or 460V) | 3,303 | |
| MP.004 | Paired Motor Fuses | 831 | |
| MP.005 | Paired Circuit Breakers (230V or 460V) | 1,686 | |
| PO.001 | Power Outlet (115V) | 590 | |
| MTB.001 | Individual Motor Terminal Boards | 1,187 | |
| MTB.002 | Paired Motor Terminal Boards | 593 | |
| DISC.002 | Fused Disconnect | 1,662 | |
| Fan Cycling Options | |||
|---|---|---|---|
| Option Code | Option Description | List Price Adder (US$) | Notes |
| FC.019 | Proportional Pressure Control | 7,736 | |
| Fins Per Inch (FPI) Options | |||
|---|---|---|---|
| Option Code | Option Description | List Price Adder (US$) | Notes |
| COIL.005 | 8 FPI | -2,830 | |
| COIL.007 | 12 FPI | 2,830 | |
| COIL.008 | 14 FPI | 5,657 | |
| COIL.00X | 10 FPI | $number.format("integer", $optionsPricing.map.get($oj.get('option_code'))) | |
